The LayoutViewer

is a lightweight viewer for mobil devices based on the same engine as the LayoutEditor. With the support of high resolution/retina displays the view experince is superior to any desktop screen. The LayoutViewer supportes as the LayoutEditor a wide range of file formats like Calma GDSII, OASIS (Open Artwork System Interchange Standard),DXF, CIF (Caltech Intermediate Form), Gerber (RS-274X) and SOURCE. A FTP client is included to load designs directly from a server.
LayoutViewer on android


(!) FAQ - Frequently Asked Questions

How to download files from a password protected site?

Enter as server name ftp://username:password@server. If user name or password contains a '@' replace it with %40.

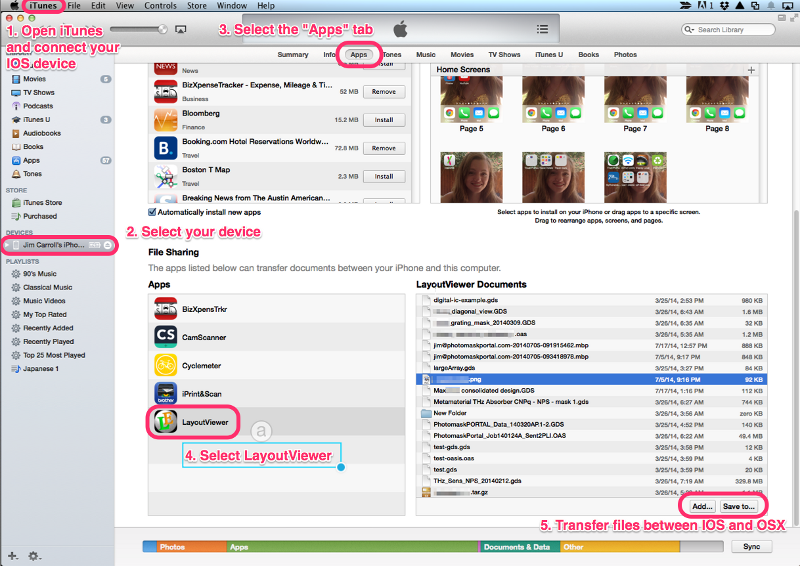

How to transfer files to the LayoutViewer without a server to my iPhone or iPad?

Do these steps:

  • Open itunes and connect your device,
  • Select your device,
  • Select the Apps tab,

  • Select LayoutViewer,

  • Transfer files

itunes file upload
