Align Value Mode

Description

  • Selected shapes are moved in a way that a given distance is align to an entered value.

mouse leftEnter the two point of the distance. First point the fix point, second point the moving point.

Example

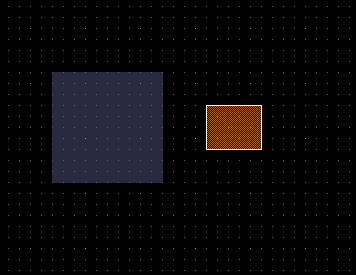

Before:


Enter Distance, in this example: left point first, right point afterwards:


Entering the value:


Result:
