Automatic Placement

  • Icon: alt icon

Description

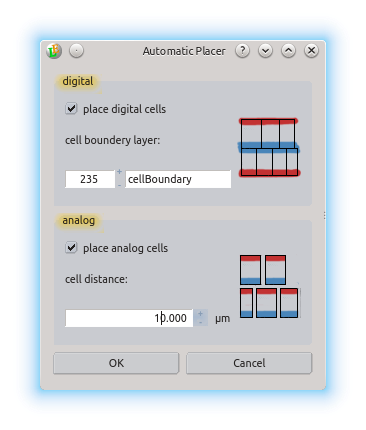

A simple automatic placement of the netlist devices. Current netlist will be check for already placed devices. Unplaced devices will be check for analog/digital device. Digital devices will be detected on the step and repeat box/bounding box. Digital devices will be placed by this box in rows with every second row mirrowed. Devices will be sorted with a little optimation in connecting length. Analog devices will be placed unsorted with a empty bounding area. (introduced with version 20140120)

Example


Digital placement example: :digital_exmaple.png

Analog placement example: :analog_example.png
