Compare Cell

  • Icon: alt icon

  • Shortcut: Shift+C

Description

The current cell is compared with another cell of the design. You will be propted to enter the second cell as well as the compare method.

  • method select non identical shapes: all shapes not existing in both cells are selected in both cells, all other elements will be deselected.
  • method Boolean XOR: a Boolean XOR will be performed between all layers of both cells. The resulting polygons will be added to a new cell. (introduced with version 20170429)

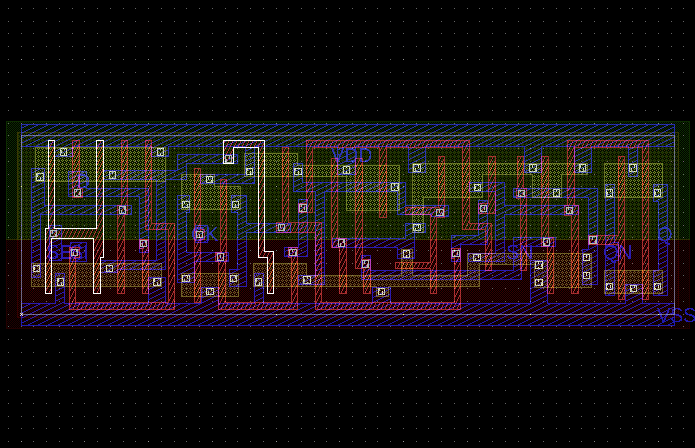

Example

cell1.png cell2.png

See also
