Crop With Selection

  • Icon: alt icon

Description

The complete cell will be cropped with selected shapes. Selected cell references will be ignored. All selected elements will be deleted after calling this feature. If required cell references will be flatted.

Usage

  • create shapes which should be use for cropping,
  • select these shapes,
  • call CropWithSelection.

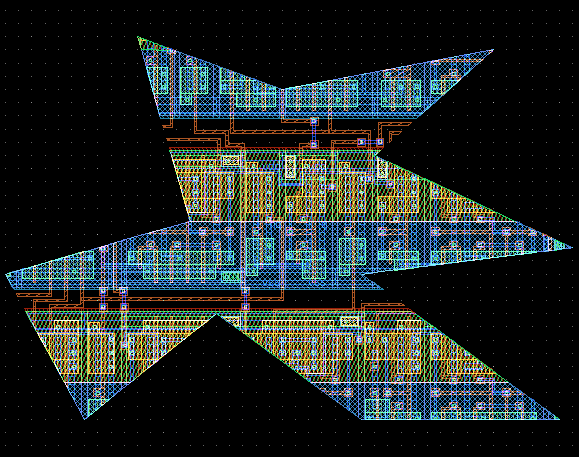

Example


See also


CategoryFeature CategoryFullVersion CategoryUtilityMenu CategoryLayout FeatureCode:1200
