Cross Section

  • Icon: alt icon

Description

Activates the CrossSectionMode. In that mode a cross section line is defined. Along this line and with the 3d setting from the LayerManager a cross section view is created in a new cell.

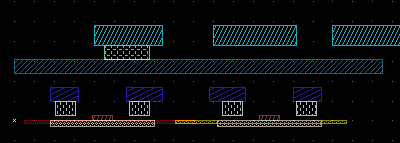

Example


See also


CategoryFeature CategoryFullVersion CategoryLayout FeatureCode:1281
