Functional Shapes

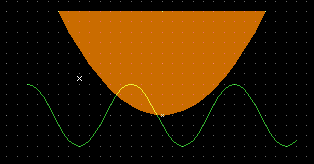

From a function y=f(x) a polygon/path can be generated with this a shape.

Download: function-shape.layout

sin-shpes

   1 #!/usr/bin/layout
   2 #name=function shapes
   3 #help=create a polygon on the active layer with a entered function
   4
   5 double func(double d){
   6 return d*d/100;
   7 }
   8
   9
  10 int main(){
  11   double d2;
  12   layout->drawing->clearPoints();
  13 // add a x^2 polygon
  14   layout->drawing->activeLayer=4;
  15   for (d2=-100;d2<101;d2+=10){
  16     layout->drawing->p(d2,func(d2));
  17   }
  18   layout->drawing->polygon();
  19  // add a cos path
  20   layout->drawing->activeLayer=2;
  21   for (d2=-130;d2<=130;d2+=5){
  22     layout->drawing->p(d2,-30*math::cos((d2-20)/50*math::pi));
  23   }
  24   layout->drawing->path();
  25   layout->drawing->scaleFull();
  26 }
