3d Insert Model

  • Icon: alt icon

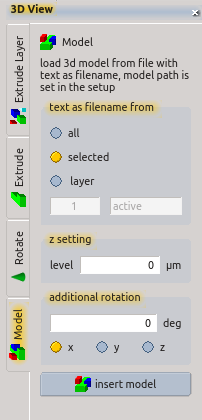

  • Dock: 3D View

3d editor model

Description

A 3d model file is loaded for any chosen text element in the 2d layout window. Z-level and rotation is set accordingly to the text element. A additional rotation can be set in the parameter. The model search path is set in the SetupDialog.

Example


See also
