OASIS Tests

A collection of some small test files using nearly any features which OASIS file format can offer.

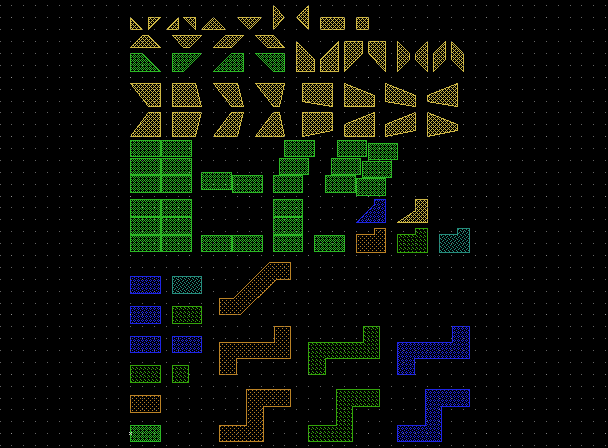

test-gds.oas

Similar to GdsIITests, just converted to Oasis. No special Oasis feature are used. test-gds.oas


test-oasis.oas

Similar to GdsIITests, identical design, however any special oasis feature was used to store the design test-oasis.oas

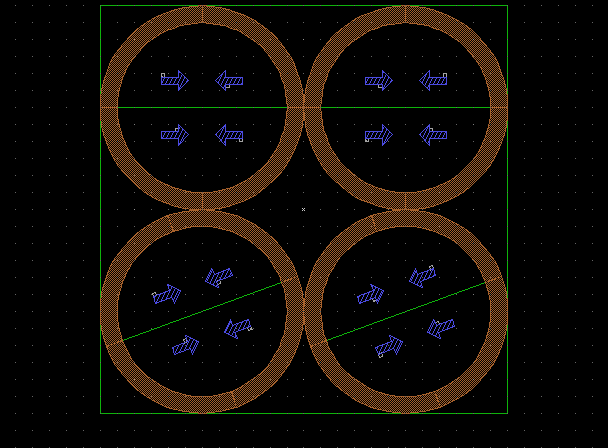

circles.oas

Similar to GdsIITests, with all kinds of transformation possible. circle.oas
