Polygon Mode

Description

A Polygon is added on the active layer.

mouse leftStarts a new polygon / a point is added to the polygon.

mouse shift leftAdd a perpendicular point to the polygon.

mouse ctrl left Closes the polygon. If the polygon has less than 3 points, the painting of this polygon will be aborted.

mouse shift ctrl leftDelete the last entered point.

mouse mid Closes the polygon. If the polygon has less than 3 points, the painting of this polygon will be aborted.

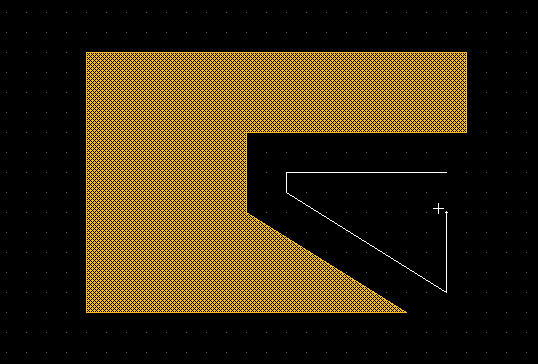

Example


See also
