Random Box Array

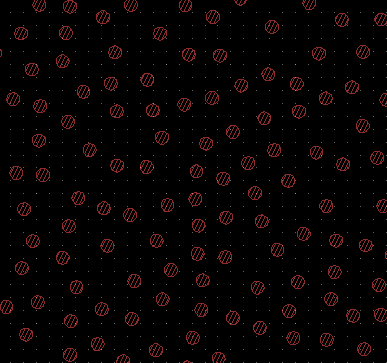

The macro generates an array of circle. The circles are scrambled and check for overlapping with other circles.

Download: randomCircleArray.layout


   1 #!/usr/bin/layout
   2 #name=random array circle
   3 #help=generates a random array of circle
   4
   5 int main(){
   6 //++++++++++++++++++++++++++++++++++++++
   7 // enter values here:
   8   int sizeX=10000; //array width
   9   int sizeY=10000; //array height
  10   int diameter=100; //circle diameter
  11   int count=2000; //number boxes
  12   int layer =9; //layer for array
  13   int space=100; //minimum circle to circle distance
  14 //++++++++++++++++++++++++++++++++++++++
  15 // the macro requires a empty cell to find the nearest element correctly
  16 layout->newCell();
  17
  18   int ds=diameter+space;
  19   int i;
  20   for ( i=count;i>0;i--){
  21    bool found=false;
  22    int x;
  23    int y;
  24    int try=0;
  25    while (!found){
  26     try++;
  27     //use this variant, if the random generator is limited to 16 bit
  28     //x=(stdlib::rand()%1000+stdlib::rand()*1000)%sizeX;
  29     //y=(stdlib::rand()%1000+stdlib::rand()*1000)%sizeY;
  30     //use this variant, if the random generator is 32 bit
  31     x=stdlib::rand()%sizeX;
  32     y=stdlib::rand()%sizeY;
  33     point p; p.set(x,y);
  34     elementList *e=layout->drawing->currentCell->nearestElement(p);
  35     if (e==NULL) found=true;
  36     else {
  37       // checks, if conflicts with existing circles
  38       point p2;
  39       int radius;
  40       if (e->thisElement->isCircle(&p2,&radius)){
  41               if (p2.x()>(x+ds)) found=true;
  42               else if (p2.x()<(x-ds)) found=true;
  43               else if (p2.y()<(y-ds)) found=true;
  44               else if (p2.y()>(y+ds)) found=true;
  45         }
  46     }
  47      // no free space found
  48      if (try>1000) return 1;
  49     }
  50     point p;
  51     p.set(x,y);
  52     layout->drawing->currentCell->addCircle(layer,p,diameter/2);
  53   }
  54  layout->drawing->scaleFull();
  55 }
