Ruler Mode

Description

mouse leftUse this function to measure distances. Each click defines the origin of the ruler. The distance to the mouse is display next to it. The distance on the x-axis and y-axis is display in the status bar. All values are displayed in user units.

mouse shift leftPerpendicular measurement only, if the shift key is pressed.

mouse ctrl leftMake the ruler permanent to the active layer.

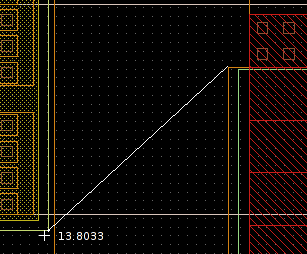

Example


See also
