the fair gds editor SetMirrorMode

Set Mirror Mode

  • Icon: alt icon

  • Shortcut: X

Description

The main drawing area is set to the MirrorMode. In the mode selected shapes are mirrored on a entered axis. The axes can freely be entered without a restriction to a coordinate axis. A combined mirror with copy is also possible.

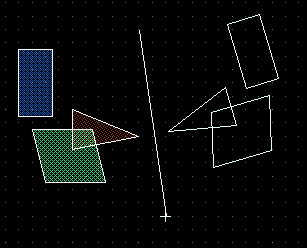

Example


See also
