Boolean A Exor B With Delete

• Icon:

Description

Performs a boolean operation on two sets of shapes. These sets has to be set before via SetSelectToA and SetSelectToB. The resulting polygon is sum of the set A and set B minus the intersecting area of the set A and set B. Unmodified source shapes part of A and B are deleted.

Please see BooleanTools a more complete description.

Example

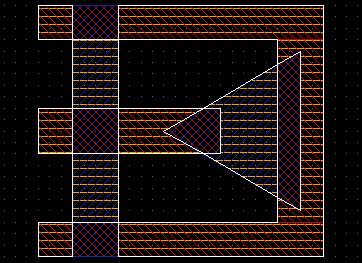

The red area is set A and blue area is set B

See also

• BooleanTools

• SetActiveLayerToA

• SetActiveLayerToB

• SetSelectToA

• SetSelectToB

• A+B

• A*B

• A-B

• B-A

• AExorB

• BoolOnLayer
