Boolean B-A

  • Icon: alt icon

  • Shortcut: 8

Description

Performs a boolean operation on two sets of shapes. These sets has to be set before via SetSelectToA and SetSelectToB. The resulting polygon is the difference of the set B minus set A.

Please see BooleanTools a more complete description.

Example

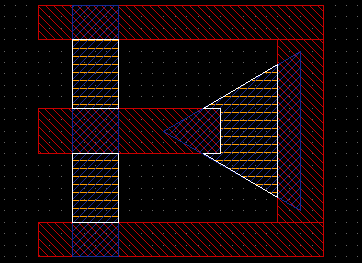

The red area is set A and blue area is set B

See also


CategoryFeature CategoryFullVersion CategoryReducedVersion CategoryUtilityMenu CategoryLayout FeatureCode:1075
