Layer Combination

• Icon:

• Dock: Design Rule Checker

Description

It is checked, whether there are region on all choosen layers. If so, they are marked as a violation. Up to five layers can be checked.

For general setup like check region and error layer please see the DesignRuleChecker documentation.

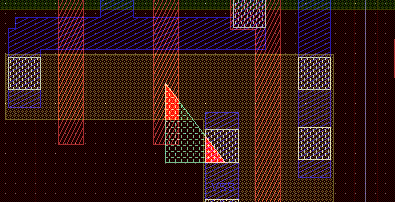

Example

See also

• DesignRuleChecker
