Minimum Elements Distance

minimum element distance

  • Icon: alt icon

  • Dock: Design Rule Checker

Description

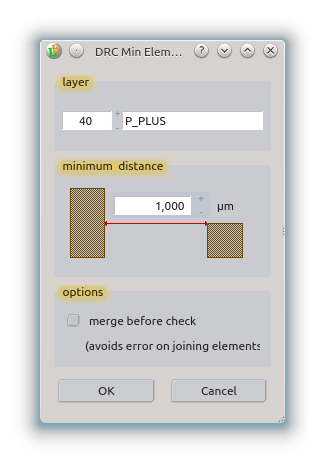

Shapes on a choosen layer with a distance less than a entered value are marked as a violation. Optional a meger before the check can be performed to avoid violation in joining shapes. Incorrect elements will be copy on the error layer. Also the location of the defect will be marked.

For general setup like check region and error layer please see the DesignRuleChecker documentation.

Example


See also
