No Pathes with Spikes

design rule checker no spikes

  • Icon: drc no spikes

Description

It is checked for paths with spikes. A spike is a path segments in the opposite direction to the previous path segment. All paths on a entered layer will be checked. Next to the spikes check paths can optional be checked on sharp angles. A sharp angle is an angle bigger than 90° between to path segments. Sharp angles on paths are not clealy defined in the GDS spec and should be avoided. The spike check was introduced with version 20140409.

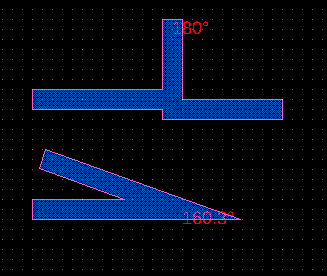

Example


See also
