Properties Mode

Description

A Dialog is open with all properties of the element.

mouse moveThe nearest element is highlighted.

mouse leftThe properies dialog of the highlighted element is opened.

mouse leftA dialog with near by elements is opened. The element for the porperties dialog can be selected from a list.

mouse ctrl leftIt is switched to an element with the identical location.

mouse shift ctrl leftBasic editing: Polygon and path elements can be edited as row data only.

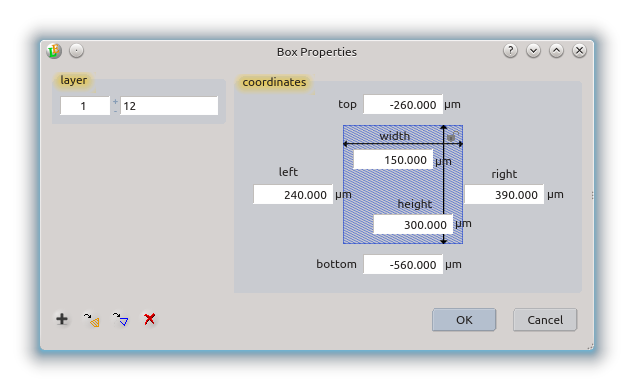

You get a different dialog for different types of elements. Even for same type of element you may get a different dialog, depending on the shape. A polygon with a circular shape will result in a other dialog than a non circular polygon. The field "datatype" and other advanced setting will only appear if used in the design or after pressing the little + in the lower left corner of the design.
