Width Dependent Distance

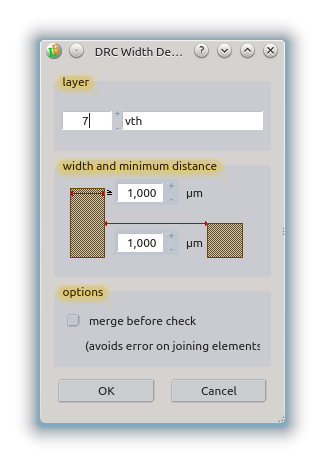

dialog minimum size

  • Icon: alt icon

  • Dock: Design Rule Checker

Description

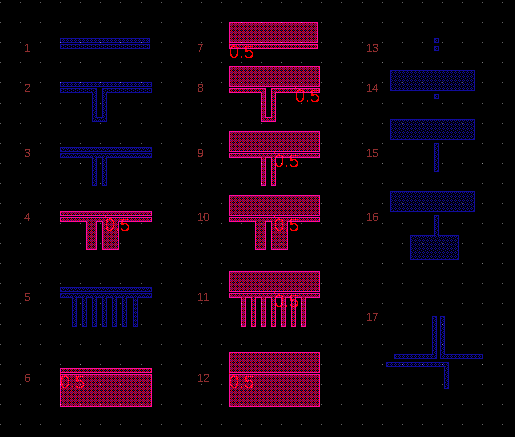

Checks for a minimum spaceing, if the width of surronding shapes extends a defined value. Please see example in which cases violations are listed.

For general setup like check region and error layer please see the DesignRuleChecker documentation.

(introduced with version 20120824)
