3d editor extrude

Description

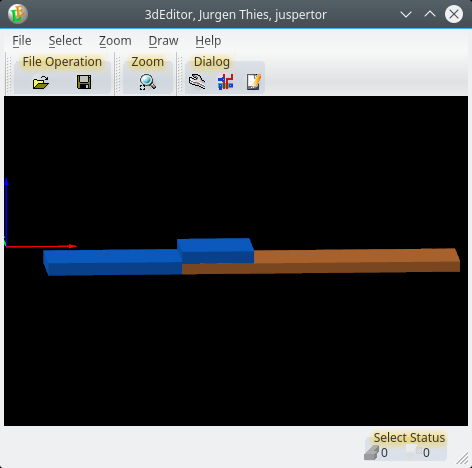

A surface base model for the creation of 3d shapes is used. Any shapes will be extruded on top of prior deposited shapes. The z level is set accordingly in a automatic way. Just the layer thickness has to be entered. (introduced with version 20161229)
