3d Deposit Set Level

  • Icon: alt icon

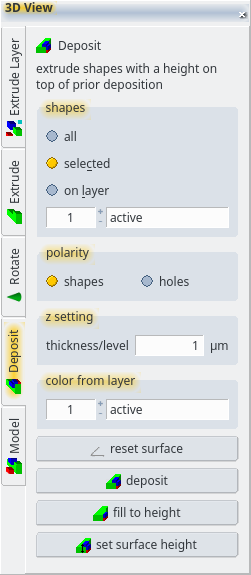

  • Dock: 3D View

3d editor extrude

Description

This feature sets the level for following 3d depositions. No 3d shapes are created by this feature just the the surface model is adjusted. So depositions in the air at defined location can be archieved (introduced with version 20161229)

Example


See also


CategoryFeature CategoryFullVersion CategoryLayout CategoryLayout3d FeatureCode:1370
