Extract Component

  • Icon: alt icon

Description

The choosen component will be extracted from the current cell. Detected devices will be added as reference to a new created cell which will only label the device connections. All relevant device parameter will be set as properties to the reference. Viewing and editing it is possible with PropertiesMode. Entering the extraction method and its parameter is done via EditComponent.

(introduced with version 20130101)

Example

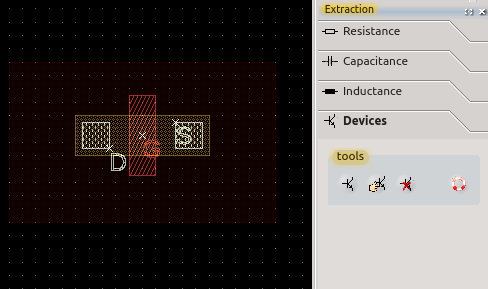

extraction of a MOS transistor:

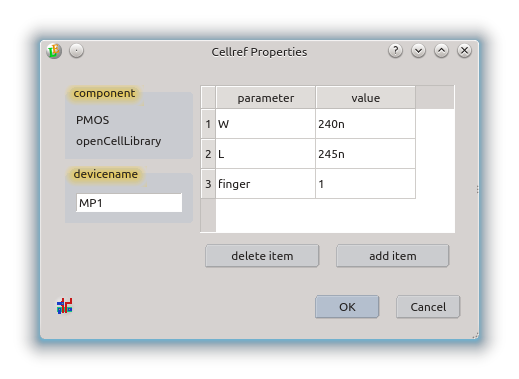

properties of the added cell reference:


See also


CategoryFeature CategoryFullVersion CategoryLayout FeatureCode:1330
